High-pressure piping systems are most vulnerable at directional changes. Specifying an inadequate fitting compromises system integrity and risks catastrophic downtime. Procurement and engineering teams must navigate overlapping dimensional standards, material grades, and connection types. A single mismatch in wall thickness or yield strength can lead to compliance failures or operational hazards. You need a reliable framework to evaluate these components before installation begins.
This systematic, engineering-focused checklist helps you evaluate and specify carbon steel elbows. We align operational parameters with industry-standard manufacturing specifications. You will learn how to ensure seamless integration into complex pipeline assemblies. Proper specification prevents leaks, reduces pressure drops, and extends the lifespan of your entire fluid transport system.
Dimensional Accuracy: Selection between Short Radius (SR) and Long Radius (LR) directly impacts fluid dynamics, pressure drop, and spatial requirements.
Connection Integrity: Matching the connection type (welded vs. threaded) to the system’s pressure and vibration thresholds is non-negotiable for leak prevention.
Material Certification: Validating ASTM grades and requiring Material Test Reports (MTRs) ensures the fitting can withstand specific temperature and corrosive allowances.
Standardization Compliance: Adherence to ASME B16.9 and B16.11 standards guarantees interoperability within existing industrial piping infrastructure.
You must map the maximum allowable working pressure (MAWP) against your system design temperatures. Carbon steel loses tensile strength as temperatures rise. A fitting rated for high pressure at ambient temperature will fail if subjected to superheated steam without proper derating. Engineers calculate these thresholds using ASME B31.3 process piping codes. You must establish baseline requirements for thermal expansion and contraction at the joint. When pipes heat up, they expand. This expansion places immense stress on the pipeline direction fitting. If the elbow lacks the required yield strength, it will deform or crack at the weld seam.
Consider the cyclic loading of the system. Systems that frequently start and stop experience pressure spikes and rapid temperature fluctuations. These conditions cause fatigue stress. You must select a wall thickness that accommodates both the steady-state operating pressure and the transient surge pressures. Follow these steps to verify your pressure thresholds:
Identify the maximum system design temperature under worst-case operational scenarios.
Consult ASME B16.9 pressure-temperature rating tables for the specific material grade.
Calculate the required minimum wall thickness using Barlow's formula based on the straight pipe equivalent.
Apply the necessary derating factors for elevated temperatures to ensure the fitting maintains structural integrity.
Account for transient surge pressures caused by pump startups or rapid valve closures.
Carbon steel dominates high-pressure applications like oil, gas, and power generation due to its exceptional cost-to-strength ratio. It provides rugged durability without the premium price tag of exotic alloys. For non-corrosive hydrocarbons, water, and steam, carbon steel performs flawlessly. It handles mechanical impact and vibration better than many brittle materials. However, you must identify its limitations. Carbon steel rusts. It degrades rapidly in highly corrosive or sanitary environments.
Food grade processing, pharmaceutical manufacturing, and aggressive chemical transport mandate stainless steel. Stainless steel contains chromium, which forms a passive oxide layer to prevent rust. If your fluid contains high levels of hydrogen sulfide (sour gas) or strong acids, standard carbon steel will suffer from sulfide stress cracking. In these specific scenarios, you must upgrade to specialized alloys or high-nickel stainless steels. For standard industrial flow, carbon steel remains the most practical and economical choice.
The type of media flowing through your system dictates the internal wear rate of the elbow. Abrasive fluids, high-velocity gases, and slurries act like sandpaper against the inner wall. As fluid changes direction, momentum forces it against the outer curve of the elbow. This causes localized erosion. Corrosive media accelerate this process by eating away the metal surface.
You must calculate the required wall thickness (Schedule) by factoring in a safe corrosion allowance over the system's lifecycle. Engineers typically add a specific measurement to the minimum required thickness. This extra metal sacrifices itself to corrosion and erosion over time. By the end of the projected lifespan, the fitting still retains enough structural integrity to hold the system pressure safely.
Clean Water/Air: Typically requires a 1.5mm (1/16 inch) corrosion allowance.
Standard Hydrocarbons: Generally demands a 3.0mm (1/8 inch) corrosion allowance.
Abrasive Slurries: Often requires 6.0mm (1/4 inch) or more, depending on particle size and velocity.
High-Velocity Steam: Requires specific allowances based on moisture content and flow rate to combat steam cutting.
Industrial piping relies heavily on standard bend angles to route fluids around obstacles and through processing equipment. The 90-degree elbow is the most common. It creates a sharp right angle, making it ideal for structural piping, petrochemical plants, and water treatment facilities where space is organized in grid layouts. However, a 90-degree turn creates significant fluid resistance. The equivalent length of pipe for a 90-degree elbow is substantially higher than a straight run, which forces pumps to work harder.
When you need to reduce pressure drop and minimize flow turbulence, the 45-degree elbow is superior. It provides a gentler directional change. Engineers frequently use 45-degree fittings in gravity-fed drainage lines and high-velocity gas systems. The 180-degree return elbow serves a completely different function. You will find these primarily in heat exchangers and heating coil applications. They allow fluid to reverse direction entirely within a compact footprint, maximizing thermal transfer efficiency in boiler tubes and cooling banks.
The radius of the bend determines how smoothly the fluid transitions through the turn. You must evaluate the trade-off between spatial constraints and frictional resistance. Long Radius (LR) elbows have a centerline radius equal to 1.5 times the nominal pipe size (NPS). Short Radius (SR) elbows have a centerline radius equal to 1.0 times the NPS.
Feature | Long Radius (LR) Elbow | Short Radius (SR) Elbow |
|---|---|---|
Centerline Radius | 1.5 x Nominal Pipe Size | 1.0 x Nominal Pipe Size |
Fluid Dynamics | Smooth flow, minimal turbulence | Higher turbulence, abrupt change |
Pressure Drop | Low resistance coefficient | High resistance coefficient |
Spatial Requirement | Requires more installation space | Ideal for tight, confined spaces |
Erosion Risk | Lower risk at the outer curve | Higher risk due to sharp impact angle |
Primary Use Case | Standard industrial piping, high velocity | Skid packages, compact structural routes |
Always default to Long Radius elbows unless space prohibits it. The reduced pressure drop saves pump energy and reduces internal erosion. Short Radius elbows should only be specified when routing pipes through tight structural clearances or compact equipment skids.
Standard elbows cannot handle every scenario. Highly sensitive, high-velocity, or piggable pipelines require custom induction bends. These are typically designated as 3D, 5D, or even larger, meaning the bend radius is 3 or 5 times the nominal pipe size. You specify a 3D or 5D industrial flow fitting when transporting heavy slurries or when the pipeline must accommodate cleaning pigs.
Pipeline pigs are devices inserted into the pipe to clean the inner walls or inspect for defects. A standard 1.5D LR elbow will trap a pipeline pig. A 5D bend allows the device to glide through the directional change smoothly. Manufacturers create these bends using an induction heating process. They heat a straight pipe section, push it through a specific radius die, and immediately quench it. This process maintains the wall thickness integrity while providing a massive, sweeping curve that drastically reduces flow turbulence.
For high-pressure, large-diameter piping systems, a butt weld steel elbow provides unmatched structural advantages. The fitting is welded directly to the end of the pipe, creating a continuous, seamless joint. This method offers the highest possible strength and leak resistance. It also provides a smooth internal surface, which minimizes flow resistance and prevents debris accumulation.
Proper end preparation is mandatory. You must follow ASME B16.25 beveling standards to ensure full penetration welds. The ends of the elbow and the pipe are machined at specific angles, typically 37.5 degrees with a 1.6mm root face, to create a V-groove. Welders fill this groove with filler metal. This uniform stress distribution ensures the joint can handle the same pressure and mechanical loads as the straight pipe itself. Butt welding requires skilled labor and radiographic inspection, making it more labor-intensive but absolutely necessary for critical infrastructure.
Socket weld fittings are engineered for small bore piping, typically under 2 inches in diameter. The pipe inserts directly into a recessed area of the elbow. A fillet weld is then applied around the exterior where the pipe meets the fitting rim. This design offers significant benefits during installation. The socket aligns the pipe automatically, eliminating the need for complex tack welding and fit-up clamps.
However, you must evaluate the risk of crevice corrosion. Welders must leave a 1/16 inch gap between the end of the pipe and the bottom of the socket before welding to allow for thermal expansion. This gap traps fluid. In corrosive services, this stagnant fluid accelerates localized decay. Furthermore, socket welds are generally not permitted in highly radioactive or extreme high-pressure services due to the inherent stress concentration at the root of the fillet weld. Reserve socket welds for flammable, toxic, or expensive fluids in small-diameter lines where leakage cannot be tolerated.
Threaded elbows offer a modular solution for specific environments. You screw the pipe directly into the fitting using tapered threads, such as NPT per ASME B1.20.1. This method requires no welding, making it ideal for hazardous areas where hot work permits are difficult to obtain. Installation is fast and requires only basic hand tools.
Frame threaded elbows as a solution strictly for low-pressure, non-critical systems. Utility water, instrument air, and low-pressure steam lines are typical applications. Threaded joints are prone to leakage under vibration or thermal cycling. They also reduce the effective wall thickness of the pipe where the threads are cut, creating a weak point. Use them only where routine disassembly is required and system pressures remain low.
The ASTM A234 specification covers wrought carbon steel fittings for moderate and high-temperature service. You will encounter WPB and WPC grades most frequently. WPB is the industry standard. It offers excellent weldability, ductility, and sufficient yield strength for the vast majority of refinery and power plant applications. It is the default choice for standard industrial flow.
WPC provides a higher yield and tensile strength. You specify WPC when the system operates at higher pressures but you want to avoid increasing the wall thickness. The trade-off lies in the chemical composition. WPC contains a higher carbon equivalent (CE). This higher carbon content reduces weldability. If the CE exceeds 0.43, welders must apply strict pre-heating procedures to prevent cracking in the heat-affected zone. Always verify that your welding procedure specifications (WPS) account for the specific grade.
Standard carbon steel becomes brittle at sub-zero temperatures. If a sudden pressure spike occurs, brittle steel shatters rather than deforming. For environments requiring high notch toughness at freezing temperatures, you must specify ASTM A420 WPL6. This grade is heavily utilized in cryogenic processing, offshore platforms in cold climates, and liquefied natural gas (LNG) facilities.
Manufacturers test WPL6 fittings using the Charpy V-notch impact test at -50°F (-45°C). This test guarantees the material can absorb a specific amount of impact energy without fracturing. Never substitute standard WPB for WPL6 in cold environments. The risk of catastrophic brittle fracture is too high.
You must choose between seamless and welded manufacturing methods based on pressure ratings, pipe diameter, and budget constraints. Seamless elbows are extruded from a single solid billet of steel using a mandrel mill. They contain no longitudinal weld seam. This provides ultimate structural integrity and eliminates the risk of seam failure. Seamless fittings are mandatory for extreme high-pressure systems and are typically available up to 24 inches in diameter.
Welded elbows are formed by rolling steel plates into a cylinder and welding the longitudinal seam using submerged arc welding (SAW), then forming the bend. For large-diameter pipelines over 24 inches, seamless manufacturing becomes economically unviable. Welded fittings are the standard for large infrastructure projects. Modern welding technology makes these seams incredibly strong, but they still represent a potential failure point. You must mandate rigorous non-destructive testing on all welded seams to ensure they meet the pressure requirements of the system.

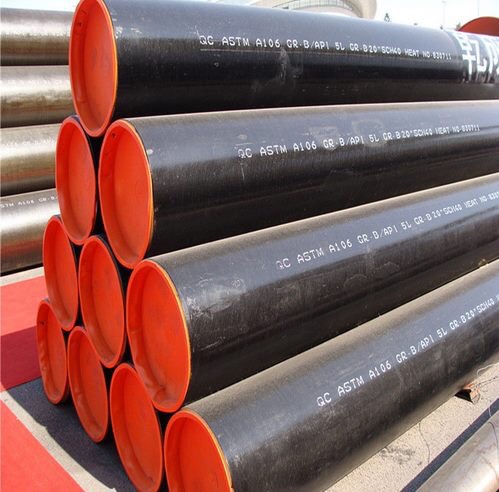

Your first checklist item is verifying the outside diameter (OD) and Schedule against the adjoining pipe. The elbow must match the pipe exactly. Common schedules include SCH 40 (standard weight), SCH 80 (extra heavy), and SCH 160. If you weld a SCH 80 elbow to a SCH 40 pipe, the internal mismatch creates a step.
This internal step causes severe flow turbulence. Turbulence leads to rapid erosion just past the weld joint. It also creates a stress riser that can cause fatigue failure. Measure the wall thickness with calibrated calipers upon delivery. Reject any fittings that fall outside the allowable dimensional tolerances defined by ASME B16.9. For example, the OD tolerance for an NPS 2 fitting is strictly +/- 1.6mm.
Ensure the specified elbow aligns perfectly with adjacent pipeline components. You rarely install an elbow in isolation. It connects to flanges, tees, reducers, and valves. The entire assembly must maintain a uniform pressure rating. If you install a high-pressure carbon steel elbow but connect it to a lower-rated flange, the flange becomes the weak link.
Evaluate the spatial footprint of the adjacent fittings. A long radius elbow might push a subsequent tee fitting too close to a structural steel beam. Draft the assembly in 3D modeling software to verify clearances. Prevent flow bottlenecks by ensuring smooth transitions between varying pipe diameters before and after the directional change. Verify flange face compatibility, ensuring raised face (RF) flanges are not improperly bolted to flat face (FF) components.
Visual inspection is never enough for high-pressure systems. You must list mandatory NDT requirements in your procurement specifications. These tests verify the internal integrity of the metal without damaging the fitting. Acceptance criteria must dictate zero cracks and complete penetration.
Ultrasonic Testing (UT): Uses high-frequency sound waves to detect internal flaws, laminations, or thickness variations deep within the steel.
Magnetic Particle Inspection (MPI): Identifies microscopic surface and near-surface cracks that are invisible to the naked eye.
Radiographic Testing (RT): Utilizes X-rays to examine the entire volume of welded seams, ensuring full penetration and zero porosity.
Dye Penetrant Testing (PT): Applied to non-magnetic surfaces to reveal surface-breaking defects.
Carbon steel requires external protection based on the installation environment. Bare steel rusts immediately upon exposure to moisture. Evaluate your external protection options carefully. For indoor, climate-controlled environments, a light coating of anti-rust oil prevents oxidation during shipping and storage.
For standard industrial outdoor applications, black paint or varnish provides a durable barrier against atmospheric moisture. If you are installing the pipeline in harsh environments, such as offshore platforms, subterranean burials, or coastal facilities, you need heavy-duty protection. Hot-dip galvanizing coats the steel in a thick layer of zinc, providing exceptional galvanic corrosion resistance. Fusion-bonded epoxy (FBE) applied at 14-16 mils thickness is an excellent choice for buried pipelines.
The primary risk at any directional change is accelerated internal wear at the outer curve of the elbow. Fluid momentum forces abrasive particles and high-velocity liquids against this specific area. Over time, the wall thins out, leading to a blowout.
Mitigate this risk by specifying heavier schedules for the elbow than the straight pipe. If the straight run is SCH 40, specify a SCH 80 elbow to provide extra sacrificial metal. Alternatively, utilize long radius or custom 3D/5D designs to smooth the fluid transition. A gentler curve spreads the impact force over a larger surface area, drastically reducing localized erosion. In extreme slurry applications, consider replacing the elbow entirely with a target tee, which allows a cushion of fluid to absorb the impact.
Improper welding procedures alter the carbon steel's microstructure. The intense heat of welding creates a Heat-Affected Zone (HAZ) adjacent to the weld bead. If the metal cools too quickly, it becomes brittle. This localized area is highly susceptible to hydrogen-induced cracking and accelerated corrosion.
Mandate strict adherence to qualified Welding Procedure Specifications (WPS). The WPS dictates the exact voltage, travel speed, and low-hydrogen filler metal required. For thicker schedules or higher carbon grades, require post-weld heat treatment (PWHT). PWHT involves slowly heating the entire joint to relieve residual stresses and restore the metal's ductility.
The industrial market is flooded with substandard fittings that fail under pressure despite bearing standard markings. Installing a counterfeit elbow in a high-pressure steam line is a fatal risk. You cannot rely on physical stamps alone.
Require comprehensive Material Test Reports (MTRs) compliant with EN 10204 3.1. This document traces the chemical composition and mechanical properties back to the original heat lot of steel at the foundry. The MTR must show the exact percentages of carbon, manganese, and trace elements, proving they fall within ASTM limits. It must also list the yield strength, tensile strength, and elongation results. Cross-reference the heat number stamped on the elbow with the physical MTR document before accepting delivery.
Specifying a carbon steel elbow requires balancing fluid dynamics, pressure containment, and spatial limitations. You must define your operational pressure and temperature first. Next, select the appropriate material grade to handle the thermal and corrosive environment. Determine the radius and angle based on flow requirements and spatial constraints. Finally, specify the connection type and schedule to ensure a leak-proof, durable joint.
Cross-reference your finalized checklist with certified piping engineers to confirm ASME B31.3 code compliance.
Demand full EN 10204 3.1 traceability documentation and Material Test Reports from all shortlisted manufacturers.
Implement a mandatory receiving inspection to verify wall thickness, bevel angles, and heat numbers before releasing parts to the construction team.
Update your internal Welding Procedure Specifications to account for the specific carbon equivalent of the purchased fittings.
A: A long radius (LR) elbow has a centerline radius equal to 1.5 times the nominal pipe size. It provides smooth flow and minimizes pressure drop. A short radius (SR) elbow has a centerline radius equal to 1.0 times the pipe size. SR elbows save space in tight structural clearances but increase flow resistance and internal turbulence. Always default to LR elbows unless spatial constraints dictate otherwise.
A: Specify butt welds for high-pressure, large-diameter systems over 2 inches. Butt welds provide full penetration joints, smooth internal flow, and maximum structural strength. Use socket welds strictly for small-bore piping under 2 inches where easy alignment is necessary. Avoid socket welds in highly corrosive services because the inherent gap at the socket root traps fluid and accelerates crevice corrosion.
A: Carbon steel delivers superior tensile strength and high durability for high-pressure, non-corrosive environments like oil, gas, and steam transport. It handles mechanical impact and vibration exceptionally well. Stainless steel is reserved for highly corrosive, acidic, or sanitary applications. If the fluid lacks aggressive corrosive properties, carbon steel provides the necessary structural integrity without the unnecessary expense of high-nickel alloys.
A: Schedule is the standardized measurement defining the wall thickness of a pipe or fitting. A higher schedule number, such as SCH 80 compared to SCH 40, indicates a thicker metal wall. This thickness directly determines the fitting's internal pressure capacity, its resistance to mechanical stress, and the amount of sacrificial metal available to withstand internal erosion over its lifespan.
A: Elbows do not carry independent, static pressure ratings. Under ASME B16.9 design rules, they are engineered to match the pressure rating of a corresponding seamless straight pipe. To verify the rating, you must calculate the allowable pressure of a straight pipe sharing the exact same wall thickness, material grade, and nominal diameter at your specific system design temperature.
A: ASME B16.9 governs the overall dimensions, tolerances, and testing requirements for factory-made wrought buttwelding fittings. ASME B16.25 dictates the specific beveling requirements for the weld ends to ensure proper penetration. ASTM A234 covers the material properties, chemical composition, and heat treatment requirements for moderate and high-temperature carbon steel fittings.
