Specifying piping for food and beverage facilities requires balancing strict sanitary compliance with rigorous mechanical demands. A failure in specification leads not only to process downtime but to severe contamination risks and safety hazards. Engineers and plant managers must account for dynamic operational conditions—specifically the extreme thermal and pressure cycling introduced by Clean-in-Place (CIP) and Sterilize-in-Place (SIP) protocols—without compromising the hygienic integrity of the system. This technical evaluation framework breaks down how to calculate pressure ratings, apply temperature derating factors, navigate standardized pressure rating charts, and select the appropriate metallurgical grade to ensure long-term reliability and compliance in food processing environments.
Material Grade Dictates Limits: 304L is sufficient for baseline operations, but 316L is mandatory for high-temperature, high-chloride environments to prevent pitting and stress corrosion cracking.
Temperature Derates Pressure Capacity: Maximum Allowable Working Pressure (MAWP) decreases significantly as operational temperatures rise; ambient pressure ratings cannot be used for SIP conditions.
Low-Temperature Toughness Matters: Cryogenic and freezing processes require materials that retain ductility; sub-zero temperatures alter pressure capacities and increase the risk of brittle fracture.
Wall Thickness is a Balancing Act: Thicker walls increase pressure tolerance but can complicate sanitary welding and alter internal flow dynamics.
Design Factors are Non-Negotiable: A standard 4:1 safety design factor, validated by repeated pressure testing, is critical when calculating burst pressure versus working pressure for sanitary process applications.
Establishing the baseline and peak parameters for fluid pressure, fluid temperature, and external environmental conditions forms the foundation of any piping specification. You must map out the entire operational envelope rather than relying solely on steady-state production metrics. Accurate data collection prevents the under-sizing of wall thicknesses or the selection of inadequate alloys that could fail under dynamic loads. Field engineers typically gather specific data points before drafting the isometric drawings.
Document maximum surge pressures in pounds per square inch gauge (psig) or bar during pump start-ups and valve closures.
Record peak temperatures during sterilization cycles, noting the duration of exposure.
Analyze the chemical composition of the media being transported, specifically looking for chloride concentrations and pH levels.
Evaluate the external environment, including ambient temperature swings and potential exposure to washdown chemicals on the exterior of the pipe.
Designing a system requires meeting strict ASME BPE (Bioprocessing Equipment) and FDA standards for surface finish while maintaining structural integrity under load. The internal surface roughness, measured as Ra (Roughness Average), must remain smooth enough to prevent bacterial adhesion and biofilm formation. Standard sanitary requirements dictate an Ra of 20 microinches (0.5 micrometers) or better. However, achieving this highly polished surface cannot come at the expense of mechanical strength. The food grade stainless steel pipe must possess sufficient wall thickness to handle internal pressures without flexing. Excessive mechanical deflection causes micro-fissures in the polished surface, which compromises sanitary compliance over time and creates microscopic traps for pathogens.
Rapid temperature fluctuations and high-pressure chemical washdowns stress hygienic stainless piping systems far beyond normal production loads. Clean-in-Place (CIP) and Sterilize-in-Place (SIP) protocols introduce severe thermal shock. Lines transition rapidly from ambient production temperatures to high-heat sterilization using live steam, and then back to cold water rinses. This thermal cycling induces massive expansion and contraction forces across the piping spools. Combined with the aggressive nature of caustic cleaners (like sodium hydroxide) and acidic sanitizers (like peracetic acid) pumped at high velocities, these protocols demand robust material selection. Precise engineering is required to prevent fatigue failure at the weld seams, joint degradation at the ferrule connections, and localized corrosion in low-flow areas.

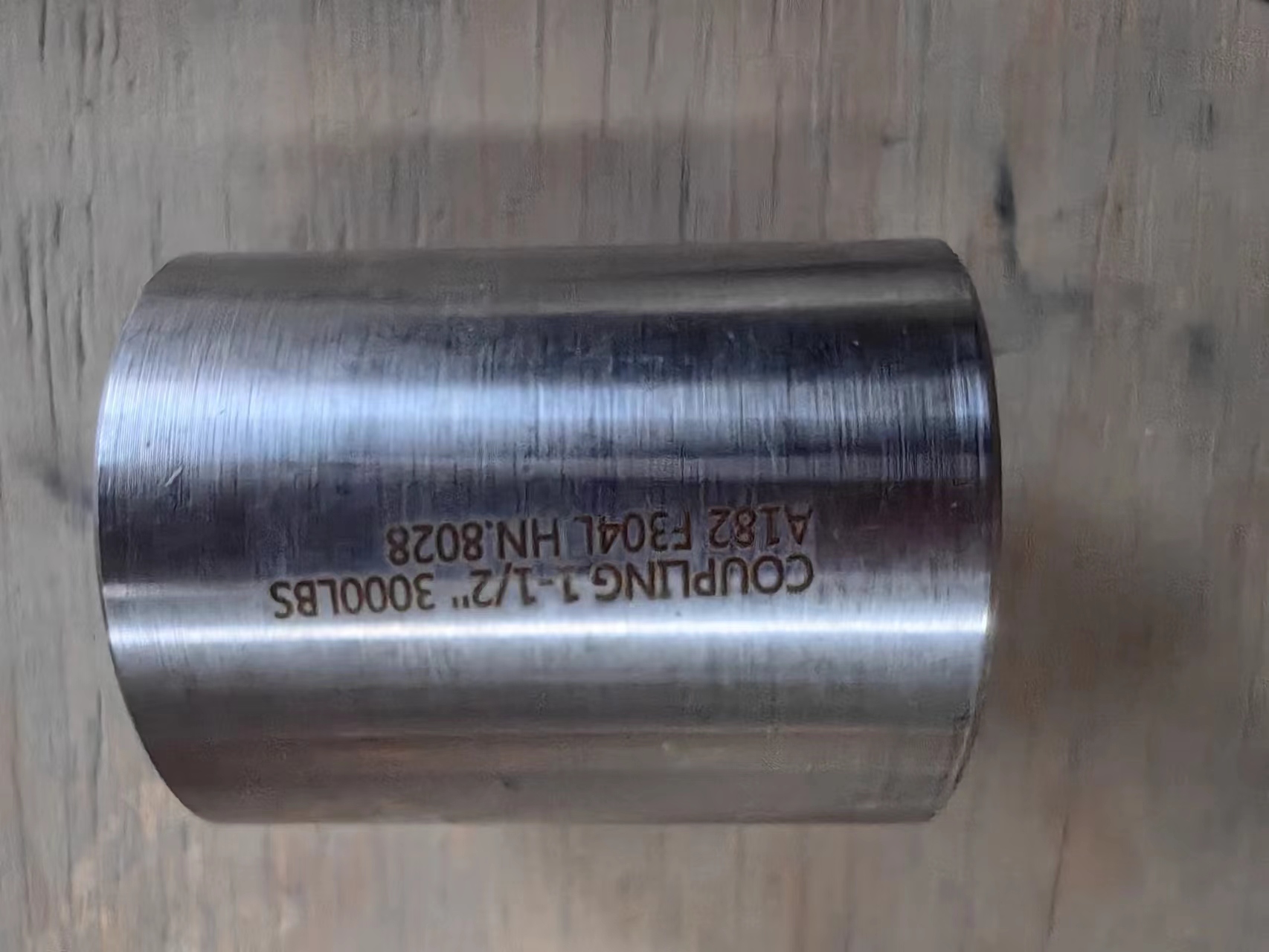

The industry standard for general food processing with low chloride exposure and moderate temperatures is 304 or 304L stainless steel. This austenitic grade provides excellent baseline corrosion resistance and formability. We see it used heavily in dairy, beverage, and dry food applications where aggressive chemicals are absent. However, when processes involve higher temperatures, high salinity, or acidic media—such as tomato processing, brining operations, or sports beverage manufacturing—the limitations of 304 become apparent rapidly.

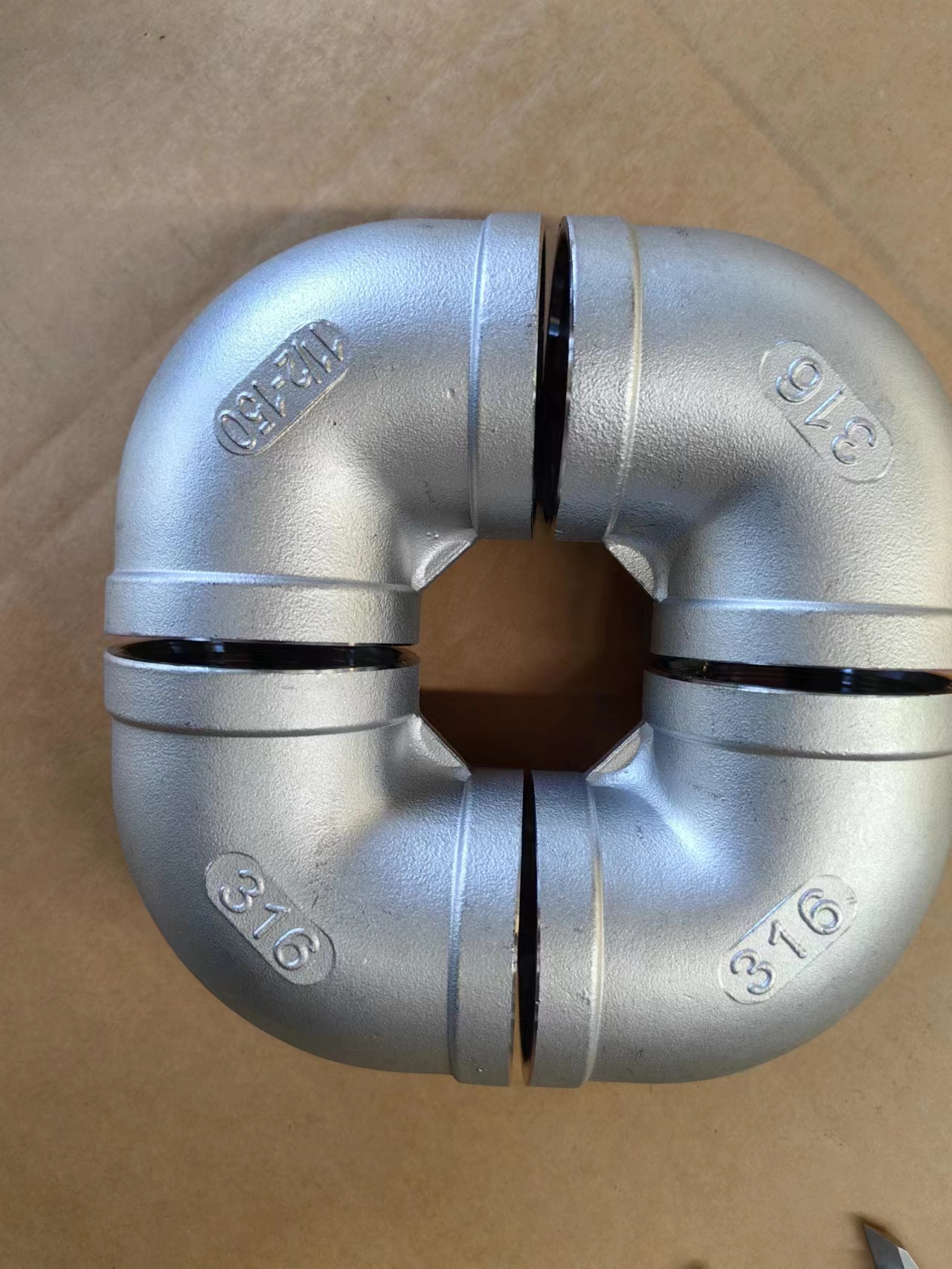

Evaluating 316 and 316L reveals the addition of molybdenum, typically between 2% and 3%. This alloying element drastically improves the metal's resistance to pitting and crevice corrosion in chloride-rich environments. The "L" designation stands for low carbon. By restricting carbon content to a maximum of 0.03%, 316L prevents carbide precipitation during welding. This ensures that the heat-affected zone of the sanitary process pipe remains fully corrosion-resistant at the joints, eliminating weak points where localized corrosion often initiates.
Material Grade | Molybdenum Content | Carbon Content (Max) | Primary Application |
|---|---|---|---|
304 | None | 0.08% | General food processing, low chlorides. |
304L | None | 0.03% | Welded systems, low chlorides. |
316 | 2.0% - 3.0% | 0.08% | High chlorides, acidic media. |
316L | 2.0% - 3.0% | 0.03% | Welded systems, high chlorides, SIP cycles. |
Standard austenitic grades sometimes fail in extreme scenarios, particularly those combining high pressure with elevated chloride concentrations. In these environments, Duplex stainless steels, such as alloy 2205, offer a necessary upgrade. Duplex features a mixed microstructure of roughly 50% austenite and 50% ferrite. This structure provides exceptional resistance to chloride stress corrosion cracking—a common failure mode for 300-series alloys under tensile stress in hot, salty environments.
The yield strength of Duplex stainless steel is roughly double that of 316L. This mechanical advantage allows engineers to specify thinner wall construction while maintaining higher pressure ratings, reducing overall system weight on the pipe racks. However, upgrading to Duplex involves specific fabrication trade-offs. The material is harder, making machinability more difficult and increasing tool wear during cutting and facing. Welding Duplex also requires precise heat input control and specialized filler metals to maintain the correct austenite-ferrite balance in the weldment. You must use highly skilled welding contractors familiar with Duplex metallurgy.
Maximum Allowable Working Pressure (MAWP) defines the greatest internal pressure a piping system can safely sustain under normal operating conditions at a specific temperature. It differs fundamentally from burst pressure, which is the absolute limit at which the material structurally fails and ruptures. Engineers rely on Barlow’s Formula to determine the internal pressure capacity based on the material's yield strength, the outside diameter of the pipe, and its wall thickness. This theoretical calculation provides the baseline mechanical limit before safety factors are applied.
To calculate the burst pressure using Barlow's Formula, you multiply the tensile strength of the material by two, then multiply that by the wall thickness, and finally divide the result by the outside diameter. Once you have the theoretical burst pressure, you apply the necessary design factors to establish the MAWP. This ensures the system operates well below the material's physical limits.
Reading standardized pressure rating tables requires distinguishing between pipe and tube configurations. A difference exists between ASTM A270 and ASTM A312 specifications. ASTM A270 governs sanitary tubing, which is measured by its exact Outer Diameter (OD) and wall thickness (gauge). Conversely, ASTM A312 covers structural and industrial pipe, measured by Nominal Pipe Size (NPS) and Schedule, where the OD does not match the nominal size for dimensions under 14 inches.
Cross-referencing working pressure charts demands strict attention to these dimensional standards. Using an ASTM A312 schedule chart to determine the pressure rating of an ASTM A270 sanitary tube will result in dangerous calculation errors. Nominal sizing discrepancies lead to specifying a wall thickness that is either insufficient for the pressure load or excessively thick. Overly thick walls complicate orbital welding parameters and alter internal flow dynamics, potentially creating areas of low velocity where product can settle.
Specification | Measurement Standard | Typical Use Case | Surface Finish Requirement |
|---|---|---|---|
ASTM A270 | Exact OD and Gauge | Sanitary food and beverage lines | Strict Ra requirements (e.g., 20 Ra) |
ASTM A312 | Nominal Pipe Size (NPS) and Schedule | Utility lines, steam, cooling water | Mill finish, no strict Ra requirement |
The industry standard dictates a 4:1 safety margin for sanitary installations. This means the calculated burst pressure is divided by four to establish the safe working pressure. This conservative design factor is heavily utilized in food processing steel tube applications to guarantee operational safety under unpredictable conditions on the plant floor.
While Barlow's Formula provides theoretical calculations, physical validation through repeated pressure testing is necessary. Hydrostatic testing accounts for real-world variables such as fatigue, pump vibration, and minor metallurgical variations in the steel heat. This 4:1 margin absorbs sudden pressure spikes, mitigates water hammer effects from rapidly closing pneumatic valves, and handles mechanical fatigue over the decades-long lifespan of the piping system.
Published pressure rating charts almost exclusively reflect ambient temperatures, typically standardized at 70°F (21°C). You must recognize the metallurgical reality: as temperature increases, the tensile and yield strength of austenitic stainless steel decreases. Operating a system at elevated temperatures without adjusting the allowable pressure limits compromises structural integrity and risks catastrophic failure. A pipe rated for 300 psig at room temperature will not safely hold 300 psig when filled with 250°F steam.
Sub-zero applications present unique mechanical demands. Liquid nitrogen freezing tunnels, carbon dioxide chilling systems, and glycol cooling lines subject piping to extreme cold. Extremely low temperatures alter the mechanical properties of stainless steel, specifically impacting its toughness. Many carbon steels become brittle and susceptible to low-temperature brittle fracture under these conditions. However, austenitic grades like 304L and 316L maintain high impact toughness and ductility at cryogenic temperatures. They are highly suitable for freezing applications without the risk of shattering under pressure.
Calculating the safe operating pressure at elevated temperatures requires applying a derating factor to the ambient MAWP. You multiply the ambient pressure rating by a specific multiplier corresponding to the maximum operational temperature. This is vital during steam sterilization (SIP) cycles, where temperatures routinely exceed 250°F (121°C), significantly lowering the metal's pressure-holding capacity.
Operating Temperature (°F) | Operating Temperature (°C) | 304L Derating Factor | 316L Derating Factor |
|---|---|---|---|
70°F | 21°C | 1.00 | 1.00 |
200°F | 93°C | 0.84 | 0.89 |
300°F | 149°C | 0.75 | 0.81 |
400°F | 204°C | 0.69 | 0.74 |
Dynamic thermal cycling causes physical expansion and contraction of stainless steel. A long run of sanitary pipe will grow in length when subjected to SIP steam and shrink during a cold water rinse. Designing expansion loops and specifying appropriate sanitary hangers are necessary steps to accommodate this movement. Restricting thermal expansion places immense stress on weld seams and ferrule connections, rapidly leading to fatigue fracturing and system leaks.
Calculate the total linear expansion based on the maximum temperature differential and the length of the pipe run.
Install U-shaped expansion loops or offset legs to absorb the thermal growth naturally.
Use specialized sanitary pipe hangers with polymer inserts that allow the pipe to slide longitudinally without scratching the exterior surface.
Avoid anchoring the pipe rigidly at both ends of a long straight run.
Orbital welding is the standard for sanitary piping, but it carries risks if parameters are incorrect. Incomplete penetration or sugaring (oxidation on the inside of the weld) creates sanitary dead-legs where bacteria thrive. These defects act as mechanical weak points highly susceptible to pressure blowouts. Validating weld integrity in high-pressure lines requires non-destructive testing (NDT) and internal boroscopy to ensure full penetration and a smooth, oxidation-free root. Welders must maintain a continuous argon purge inside the pipe to prevent oxygen from reacting with the molten metal.
Repeated thermal expansion and contraction cause micro-fissures in the electropolished or mechanically polished internal surface. These microscopic cracks degrade the Ra value, creating ideal environments for biofilm accumulation that standard CIP protocols cannot remove. Specifying appropriate wall thicknesses minimizes mechanical flex during pressure and thermal shifts. This protects the internal surface finish from stress-induced degradation. Electropolishing offers better resistance to this degradation compared to mechanical polishing because it removes the smeared metal layer left by abrasives.
Chloride Stress Corrosion Cracking (CSCC) is a severe failure mode triggered by the combination of tensile stress, elevated temperatures (typically above 140°F/60°C), and chloride exposure. Mitigation requires a multi-faceted approach. Upgrading the material grade to a higher molybdenum alloy or Duplex steel provides chemical resistance. Ensuring proper system drainage with precise slope design (typically 1/8 inch per foot) avoids the pooling of chloride-rich fluids. Strict control of CIP chemical concentrations prevents the accidental over-exposure of the piping to corrosive agents.
Verify material test reports (MTRs) directly with your supplier to confirm exact chemical compositions and heat numbers before installation.
Consult a certified metallurgist when designing systems for highly corrosive, high-chloride, or extreme-temperature applications.
Utilize certified orbital welding contractors to ensure joint integrity, maintain sanitary compliance, and prevent internal oxidation.
Implement routine boroscopy inspections to monitor internal surface conditions, track Ra degradation, and verify weld health over time.
A: The maximum pressure rating depends entirely on the outer diameter (OD) and wall thickness. For example, a 1-inch OD x 0.065-inch wall 316L tube typically has an ambient working pressure of around 1,300 psig, but this decreases significantly at elevated temperatures.
A: No, ASTM A312 is intended for industrial structural applications. Sanitary food processing requires ASTM A270 tubing, which mandates specific internal surface finish (Ra) requirements and precise OD measurements necessary for hygienic ferrule connections.
A: Steam sterilization (SIP) raises the metal's temperature, which lowers its yield strength. You must apply a temperature derating factor to the ambient pressure rating to determine the safe working pressure during the SIP cycle.
A: Dairy processing involves high temperatures and frequent chemical cleaning. 316L contains molybdenum, which provides superior resistance to pitting and corrosion caused by the chlorides and acids present in milk and CIP chemicals.
A: Sugaring is heavy oxidation that occurs on the back side of a weld when it is exposed to oxygen at high temperatures. It is prevented by properly purging the inside of the pipe with an inert gas, like argon, during welding.
A: Prevent CSCC by keeping operating temperatures below 140°F when chlorides are present, ensuring pipelines drain completely to prevent pooling, and upgrading to high-molybdenum or Duplex stainless steels in aggressive environments.
