Specifying incorrect fastening hardware in industrial systems introduces severe operational risks. Catastrophic failures, including hazardous leaks, sudden blow-offs, and extensive structural damage, frequently originate at the support level under extreme conditions. When facilities attempt to standardize hardware across all systems, they often deploy inadequate clamps in high-stress zones. Engineers and procurement teams constantly struggle to balance mechanical demands with environmental degradation. They must account for rapid thermal expansion and dynamic pressure spikes without compromising system integrity. This guide provides a technical evaluation framework for selecting the correct hardware. We focus on material science, structural design, and environmental compatibility. By understanding how pressure and temperature interact with fastening hardware, you can ensure long-term reliability and prevent dangerous structural failures in your piping networks.
Thermal Limits Dictate Material: Standard rubber-lined clamps fail above 120°C (248°F); applications exceeding 300°C require unlined, specialized alloy or all-metal configurations because standard screws and bands will warp or fail under extreme heat.
Dynamic Pressure Requires Heavy-Duty Designs: High-pressure fluid transfer necessitates rigid, heavy-duty structural designs rather than standard worm-gear or light-duty bands.
Expansion Management is Critical: Systems with high temperature variance require an adjustable pipe holder, sliding support, or spring-loaded clamp to accommodate thermal expansion and contraction without shearing the mount or losing tension.
Compliance Mitigates Risk: Selection must align with industry-specific load ratings and metallurgical standards (e.g., ASME, DIN, ASTM) to prevent liability and ensure operational safety.
Piping materials expand and contract at different rates. You must account for this movement to prevent structural damage. Steel, copper, and PVC possess unique coefficients of thermal expansion. When the internal medium heats up, the pipe elongates. This longitudinal shift dictates support spacing and hardware type. If you anchor a high-temperature line rigidly without allowing for expansion, the mechanical stress will buckle the pipe. It can also shear the mounting hardware directly off the structural beam.
Temperature fluctuations transfer heat directly into the clamp body. This thermal load alters the tensile strength of the metal. Under continuous extreme heat, standard screws and thin metal bands yield, stretch, or fail completely. You must differentiate between fixed point supports and sliding supports. Fixed anchors lock the pipe in place. They direct thermal movement in a specific, engineered direction. Sliding supports allow the pipe to move longitudinally across the mounting surface. This safely manages thermal expansion without degrading the structural mount.
To illustrate the differences in material behavior, consider the expansion rates of common piping materials when exposed to a 50°C temperature increase:
Piping Material | Expansion Coefficient (mm/m°C) | Expansion per 100m at 50°C ΔT (mm) |
|---|---|---|
Carbon Steel | 0.0120 | 60.0 |
Copper | 0.0165 | 82.5 |
Stainless Steel (304) | 0.0173 | 86.5 |
PVC | 0.0800 | 400.0 |
Pressure within a piping system is rarely static. Static pressure applies a constant, predictable load. Dynamic pressure introduces destructive forces. Water hammer, pump pulsation, and operational vibration create sudden, violent spikes in mechanical stress. These dynamic forces transfer directly from the pipe wall into the industrial pipe support. Hardware designed only for static loads will quickly loosen or fracture under continuous vibration.
Internal pressure translates to both radial and axial forces on the support structure. Radial force pushes outward against the clamp band. Axial force attempts to push the pipe through the clamp longitudinally. The correlation between pipe diameter, operating pressure, and required clamping force is absolute. Larger diameter pipes carrying high-pressure fluids require exponentially higher clamping forces to prevent blow-offs.
To properly evaluate dynamic loads in the field, follow these steps:
Identify the maximum operating pressure (MOP) of the system during peak load conditions.
Calculate the potential pressure spike from water hammer events based on valve closure speeds.
Determine the total weight of the pipe section, including the fluid medium and external insulation.
Assess the frequency and amplitude of pump-induced vibrations transferring through the line.
Select hardware with a safe working load (SWL) that exceeds the combined static and dynamic forces by a factor of at least three.
Elastomeric linings provide excellent noise reduction and vibration dampening. However, they have strict thermal limits. Standard EPDM rubber linings are typically rated for environments ranging from -30°C to +120°C. If you deploy EPDM in systems exceeding 120°C, the rubber hardens, cracks, and disintegrates. This leaves a loose metal band vibrating against the pipe. It accelerates wear and risks a breach.
For mid-range high temperatures, silicone linings offer better thermal stability. They function reliably up to 220°C. For applications exceeding 300°C, such as steam lines or exhaust systems, you must specify all-metal clamps. These configurations contain zero plastic or rubber components. When selecting all-metal hardware for extreme heat, pay close attention to the metallurgical limits of the fasteners. Standard carbon steel bolts lose their tensile strength at elevated temperatures. They require specialized high-heat alloys to maintain clamping force.
Lining Material | Minimum Temperature | Maximum Temperature | Primary Application |
|---|---|---|---|
EPDM Rubber | -30°C | +120°C | Chilled water, standard HVAC, domestic plumbing |
Silicone | -50°C | +220°C | Low-pressure steam, hot water lines, food processing |
PTFE (Teflon) | -200°C | +260°C | Aggressive chemicals, high-purity systems |
Unlined (All-Metal) | -100°C | +600°C+ | High-pressure steam, exhaust flues, heavy industrial |
The base metal of your clamp determines its lifespan in any given environment. Carbon steel, whether zinc-plated or hot-dip galvanized, serves well in standard indoor, non-corrosive environments. It offers high tensile strength at a reasonable cost. However, zinc coatings degrade quickly when exposed to harsh chemicals, high humidity, or extreme weather.

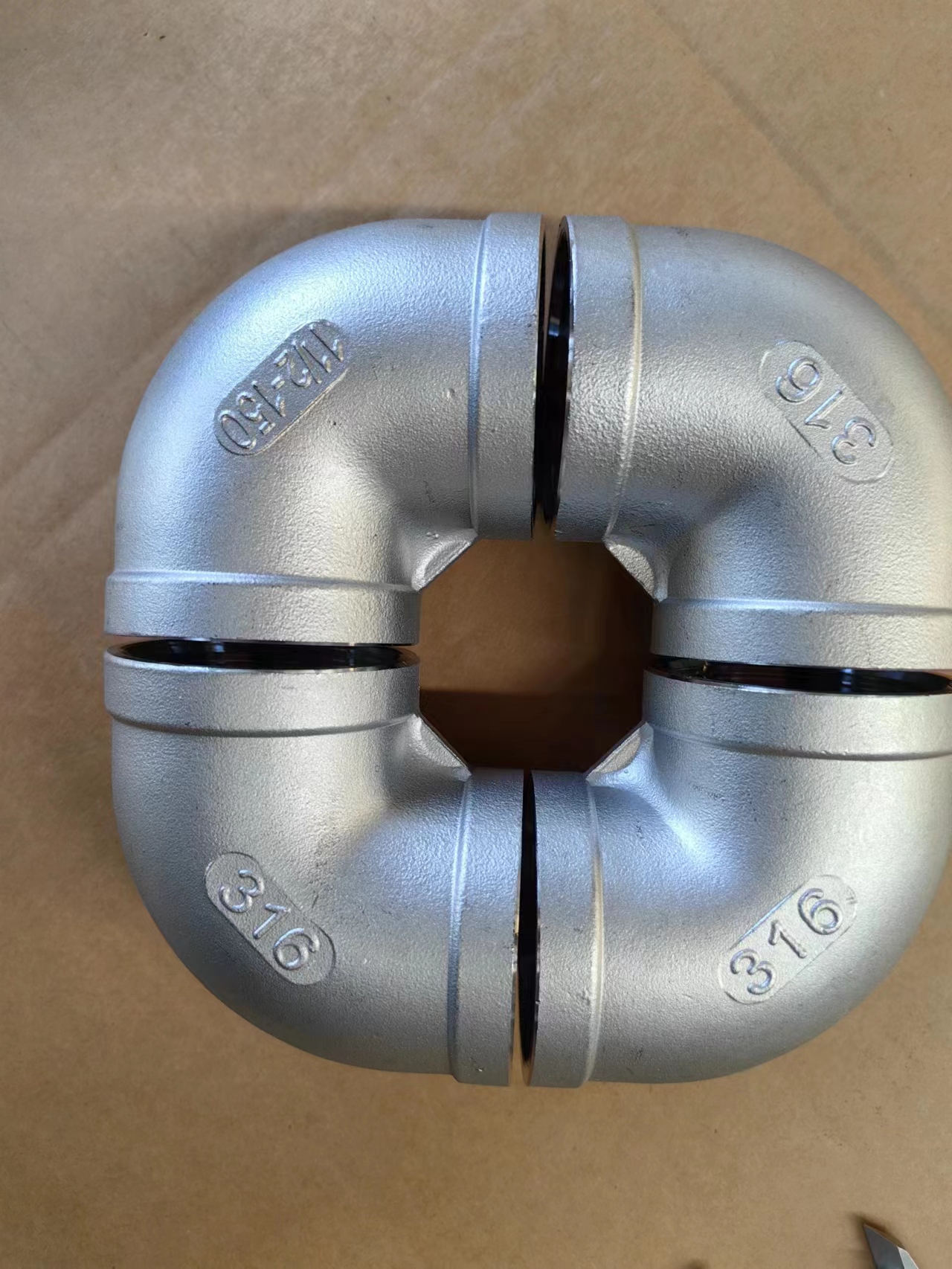

Stainless steel provides superior high-temperature stability and external corrosion resistance. Grade 304 stainless steel handles general outdoor exposure and moderate moisture. Grade 316 or 316L contains molybdenum. This addition makes it highly resistant to chlorides and industrial solvents. For the most extreme environments, such as aggressive chemical processing or offshore marine platforms, specialized alloys like Inconel or Monel are mandatory. These exotic metals maintain their structural integrity under intense heat. They resist severe chemical attacks that would dissolve standard steel.
You must evaluate the external operating environment alongside internal temperature and pressure. A marine environment exposes hardware to constant saltwater spray. A chemical processing plant introduces corrosive airborne fumes. Cleanrooms require hardware that will not shed particulates or rust over time. The external environment often dictates the baseline metallurgical requirements for your support structures.
Furthermore, you must match the clamp material to the internal medium. In the event of a micro-leak, permeation through flexible hoses, or off-gassing, the escaping substance directly contacts the hardware. If a highly acidic fluid leaks onto a standard galvanized pipeline mounting clamp, it rapidly corrodes the metal. This leads to a secondary structural failure. Always assume the clamp will eventually be exposed to the fluid it secures.
Standard two-piece clamps and lightweight worm-gear bands have strict structural limitations. Manufacturers engineer them for low-pressure, static applications like basic plumbing or light HVAC routing. In high-pressure scenarios, thin metal bands stretch. Small fastener threads strip under radial load. Relying on standard configurations for heavy industrial fluid transfer guarantees premature failure.
Heavy-duty clamps are engineered specifically for high load-bearing requirements. They utilize thicker gauge steel, reinforced geometric profiles, and heavy welded nuts. The increased mass and rigid structure prevent deformation during pressure spikes and water hammer events. When securing large-bore pipes or high-velocity pump discharge lines, heavy-duty structural designs are non-negotiable. They maintain system safety and prevent catastrophic blow-offs.
T-bolt designs provide a significant mechanical advantage over standard worm gears. They utilize a solid steel bolt and a heavy-duty trunnion to draw the band tight. This delivers uniform 360-degree sealing pressure. The design eliminates localized pinch points common with cheaper clamps. It provides the immense radial force required for high-pressure retention on flexible industrial hoses.
Constant tension clamps are necessary in systems experiencing high temperature variations. These clamps utilize Belleville springs, which are conical spring washers integrated into the bolt assembly. As the pipe or hose expands from heat, the springs compress. As the system cools and contracts, the springs expand. This automatically adjusts the diameter. It ensures the clamp maintains consistent torque through endless thermal cycles without requiring manual retightening.
Adjustable designs are vital when dealing with slight variations in outer diameter or when precise tensioning is required. An adjustable pipe holder allows installers to dial in the exact clamping force needed. You can secure the line without crushing the pipe or leaving it loose enough to vibrate. This flexibility is essential when securing pipes manufactured with wider dimensional tolerances.
These adjustable supports excel in systems subject to frequent maintenance or heavy operational vibration. They are also ideal for transition points where flexible industrial hoses meet rigid piping. Because flexible hoses expand radially under pressure spikes, an adjustable holder accommodates this dynamic movement. It provides a secure, vibration-dampening anchor point that adapts to the physical changes in the line.
Accurate sizing is the foundation of a secure mount. You must measure the exact Outer Diameter (OD) of the pipe, including any required insulation thickness. Relying on Nominal Pipe Size (NPS) is a common and dangerous error. NPS is a standardized designation, not an exact physical measurement. Ordering a pipe clamp based on NPS often results in hardware that is either too tight or too loose.
Sizing for rigid pipes differs significantly from sizing for flexible hoses. Pressure spikes cause flexible materials to expand radially. Clamps for hoses must have specific tolerances to handle this expansion without cutting into the hose jacket. Under-sizing a clamp risks crushing the pipe wall or destroying the insulation layer. Over-sizing allows the pipe to vibrate. This leads to abrasive wear, fatigue, and eventual slippage.
To clarify the discrepancy between NPS and actual OD, review the following standard steel pipe dimensions:
Nominal Pipe Size (NPS) | Actual Outer Diameter (OD) in Inches | Actual Outer Diameter (OD) in Millimeters |
|---|---|---|
1/2" | 0.840" | 21.3 mm |
1" | 1.315" | 33.4 mm |
2" | 2.375" | 60.3 mm |
4" | 4.500" | 114.3 mm |
Never rely on guesswork when determining load capacities. You must verify manufacturer load charts against recognized industry standards. Look for compliance with ASME B31.1 for power piping, ASME B31.3 for process piping, or DIN 4109 for sound insulation. These standards dictate the minimum performance criteria for support hardware in critical applications.
Learn to interpret the difference between safe working load (SWL) and breaking load specifications. The breaking load is the point of absolute catastrophic failure. The SWL incorporates a safety factor, often 3:1 or 5:1. This ensures the hardware operates well below its ultimate tensile strength. Always size your supports based on the SWL. This accommodates unexpected dynamic pressure spikes and thermal anomalies without risking structural collapse.
Galvanic corrosion occurs when two dissimilar metals come into direct physical contact in the presence of an electrolyte. Ambient moisture or condensation acts as this electrolyte. For example, clamping a raw carbon steel bracket directly onto a copper pipe causes the carbon steel to rapidly corrode. It acts as an anode. This hidden degradation destroys the mount from the inside out.
Mitigation requires breaking the electrical connection between the metals. Use dielectric isolation pads, rubber linings, or specialized thermoplastic tape to separate the clamp from the pipe. Alternatively, match the metallurgy. Use copper-plated clamps for copper pipes. You can also specify heavy specialized coatings like epoxy or hot-dip galvanization to create a durable barrier against galvanic action.
Improper installation torque is a primary cause of support failure. Over-torquing strips the fastener threads and deforms the clamp band. It can also crush the underlying pipe or insulation. Under-torquing fails to secure the pipe. This leads to severe vibration damage, abrasive wear, and eventual leaks as the pipe shifts out of alignment.
Facilities must implement strict standard operating procedures for installation. Follow these guidelines to ensure proper torque application:
Clean all fastener threads to remove debris or factory grease that could alter torque readings.
Align the clamp halves perfectly parallel to prevent uneven binding on the pipe surface.
Use a calibrated torque wrench rather than impact drivers or standard hand tools.
Apply torque evenly, alternating between bolts if the clamp features a two-piece design.
Verify the final torque value against the manufacturer's exact specifications for that specific hardware model.
Clamping directly over standard fiberglass or foam insulation crushes the material. This destroys its thermal resistance. It creates a thermal bridge where heat escapes or cold transfers to the clamp. In chilled systems, this thermal bridging causes severe condensation. It leads to localized corrosion and dangerous water pooling on the facility floor.
To maintain insulation continuity without sacrificing structural support, utilize high-density polyurethane (PU) blocks or calcium silicate inserts at the support points. These rigid inserts bear the mechanical load of the clamp while providing the same thermal resistance as the surrounding insulation. The clamp secures the rigid insert, and the insert protects the pipe. This ensures a continuous, vapor-tight thermal barrier.
Audit your current piping schematics to identify high-stress zones experiencing frequent thermal cycling or water hammer.
Measure the exact outer diameter of all lines, including insulation thickness, before ordering replacement hardware.
Request material test reports from your hardware manufacturer to verify metallurgical compliance with your operating environment.
Implement a standardized torque procedure using calibrated wrenches for all future support installations.
A: Using hardware above its thermal limit causes rapid degradation. Rubber linings harden, crack, and burn away, eliminating vibration dampening. Standard metal screws and bands lose tensile strength, warping under load. This results in a complete loss of clamping tension, leading to severe vibration, structural fatigue, and eventual catastrophic failure of the mount.
A: Thermal cycling causes piping materials to expand as they heat and contract as they cool. Standard clamps cannot adapt to this movement and will eventually loosen. Spring-loaded or constant tension clamps utilize Belleville washers that automatically compress and expand, maintaining a consistent, secure seal throughout endless temperature fluctuations without requiring manual retightening.
A: Rigid clamps act as anchors; they lock the pipe firmly in place to prevent any movement and direct forces to specific areas. Sliding supports are necessary on long pipe runs where thermal expansion occurs. They hold the pipe's weight while allowing it to move longitudinally, preventing the expanding pipe from buckling or shearing the hardware.
A: Material alone does not guarantee performance. While stainless steel resists corrosion, a standard worm-gear design lacks the structural strength for high pressure. High-pressure systems require heavy-duty structural designs, such as T-bolts, reinforced profiles, and appropriate gauge thickness, to handle radial forces, regardless of the steel grade used.
A: Loosening is typically caused by thermal cycling, continuous operational vibration, or improper initial torque. As pipes expand and contract, standard fasteners stretch and lose grip. Without spring-loaded tensioning mechanisms to absorb these dynamic changes, the hardware will naturally back off, requiring frequent maintenance to prevent structural shifting.
A: Standard clamps will crush soft insulation, destroying its thermal properties and causing condensation or heat loss. You must use load-bearing insulation inserts, such as high-density polyurethane blocks or calcium silicate. The clamp secures around this rigid insert, supporting the pipe's weight while maintaining a continuous, uncompromised thermal barrier.
A: NPS is a standardized, dimensionless designator used for pipe categorization, which does not match the exact physical measurement. OD is the actual, measurable outside diameter of the pipe. Ordering hardware based strictly on NPS often results in poor fitment. You must always measure the exact OD to ensure precise, secure clamp tension.
