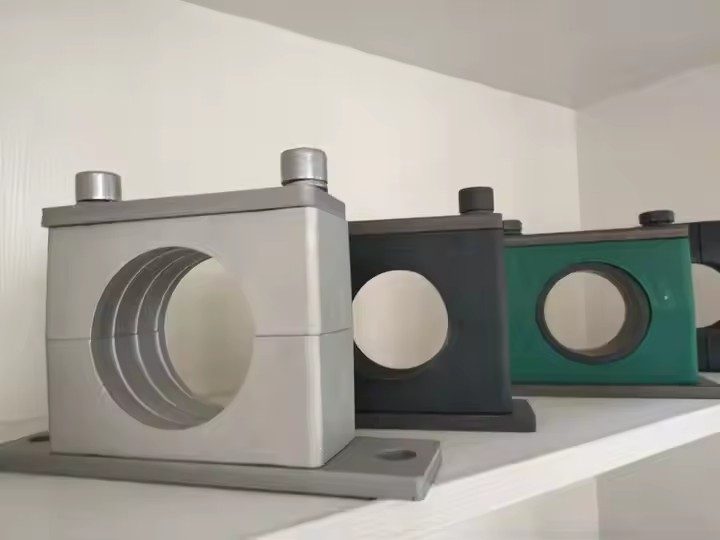

High Precision Clamps for Hydraulic Hose Fittings are engineered to secure high-pressure hydraulic lines in industrial machinery.
| Quantity: | |
|---|---|
Product Description
Machined from 7075 aluminum alloy with a hard anodized finish, these clamps maintain dimensional accuracy within ±0.02mm, critical for preventing leaks in systems operating up to 5,000 psi (34.5 MPa). They comply with SAE J516 standards for hydraulic fittings, ensuring compatibility with 1/4" to 2" diameter hoses.
Type | Tubing Clamp Elongated Light Series Carbon Steel Hardware |
Component | Clamp body(2 halves),bolts,top & bottom plate |
Material | Bolts:Carbon steel/SS304/SS316 |
Surface | Galvanized |
Standard | ISO9001,DIN3015 |
Certification | ISO9001:2008 |
Industry Focus | Hydraulics,industrial,vehicles,ships,electric power |
Pressure Resistance: Rated for constant operating pressures up to 5,000 psi, with burst pressure testing exceeding 15,000 psi.
Dimensional Precision: CNC-machined grooves ensure 100% contact with hose reinforcement layers, reducing fatigue failure risk.
Chemical Compatibility: Resists degradation from hydraulic fluids (mineral oil, water-glycol, and synthetic esters) per ISO 18797.
Vibration Dampening: Integrated polyurethane bushings reduce resonance by 40% in high-vibration environments like construction equipment.
Mobile Hydraulics: Secures hoses in excavators, loaders, and agricultural tractors, withstanding dynamic pressure spikes.
Industrial Machinery: Used in injection molding presses, metal stamping equipment, and hydraulic presses.
Aerospace Ground Support: Installed in aircraft hydraulic service carts and fueling equipment.
Q: What is the maximum temperature rating?
A: -40°C to 120°C (-40°F to 248°F) for standard models; high-temperature versions (up to 200°C) are available with Viton bushings.
Q: How to determine clamp spacing for long hose runs?
A: For hoses under 3/4" diameter, space clamps every 24"; for larger diameters, reduce spacing to 18" to prevent sagging.
Q: Can they be reused after disassembly?
A: Reuse is not recommended for critical applications, as the anodized layer may wear, reducing corrosion resistance.
